Product Details

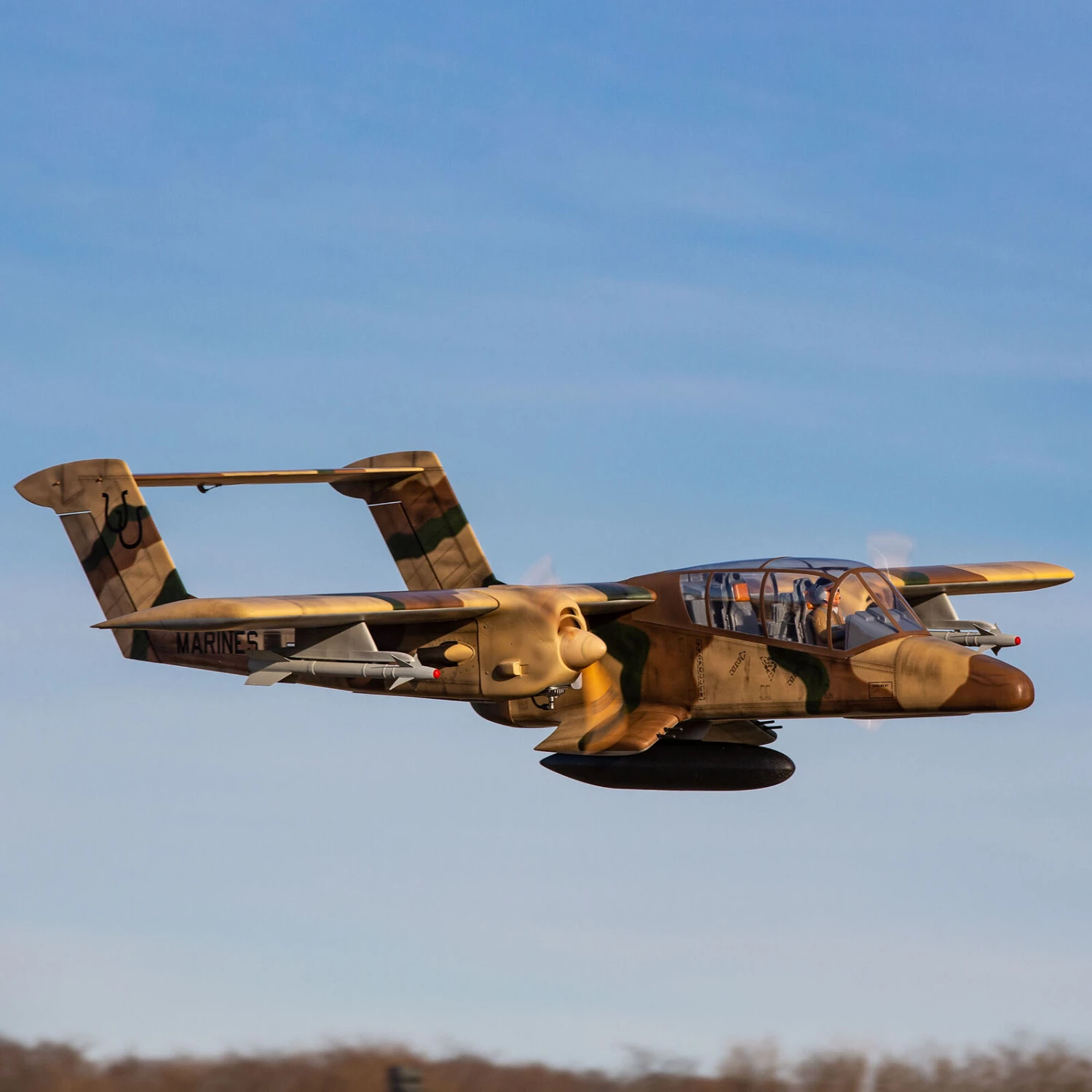

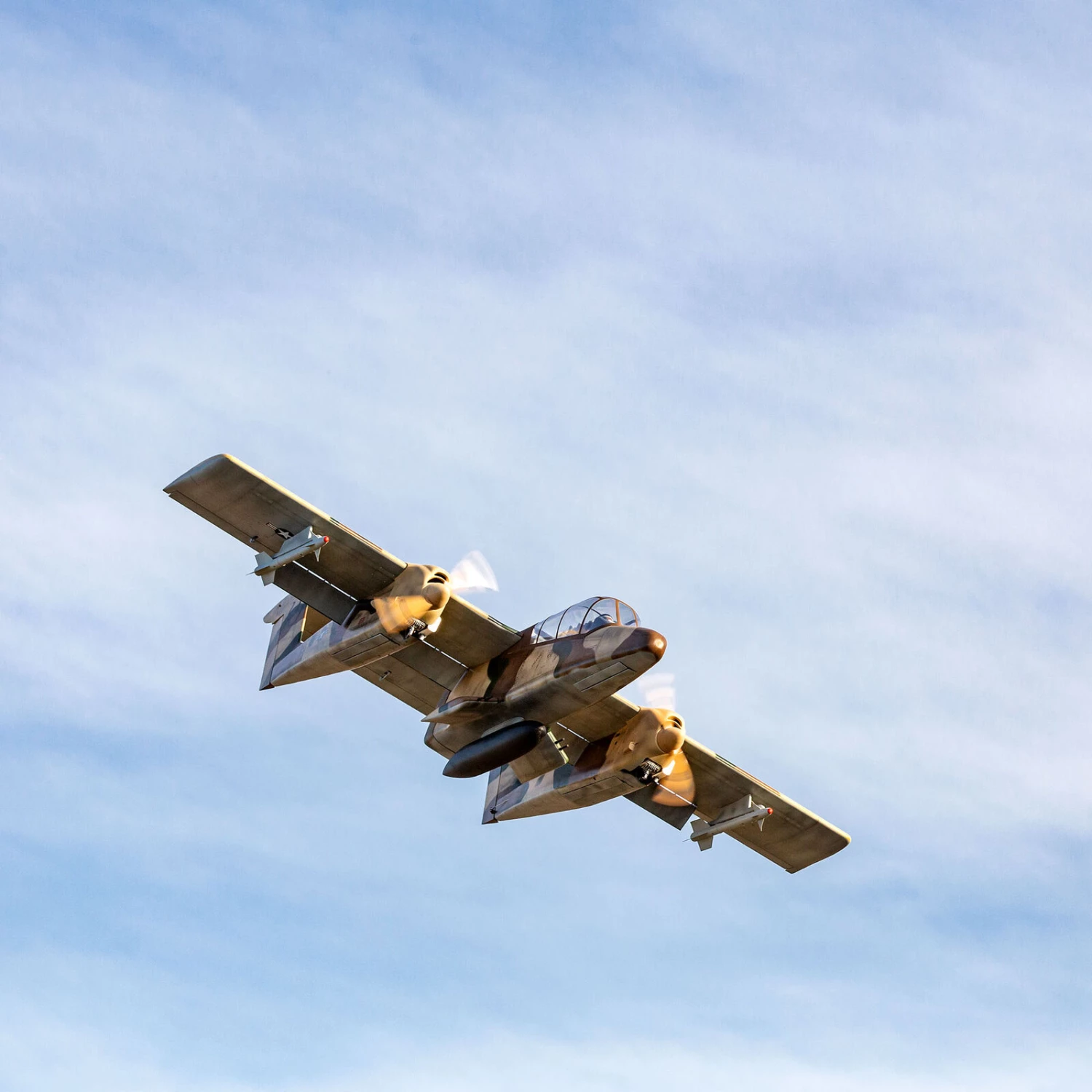

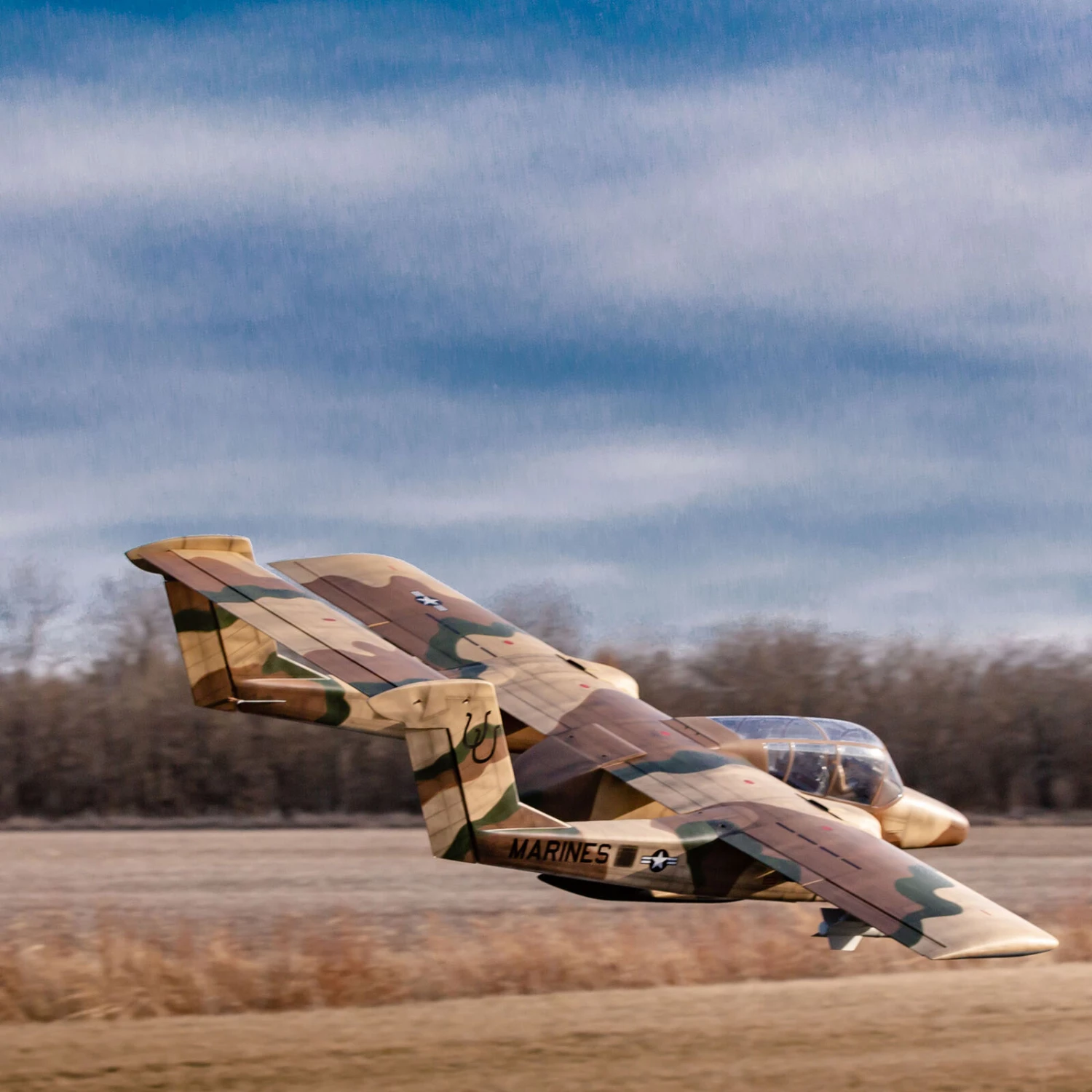

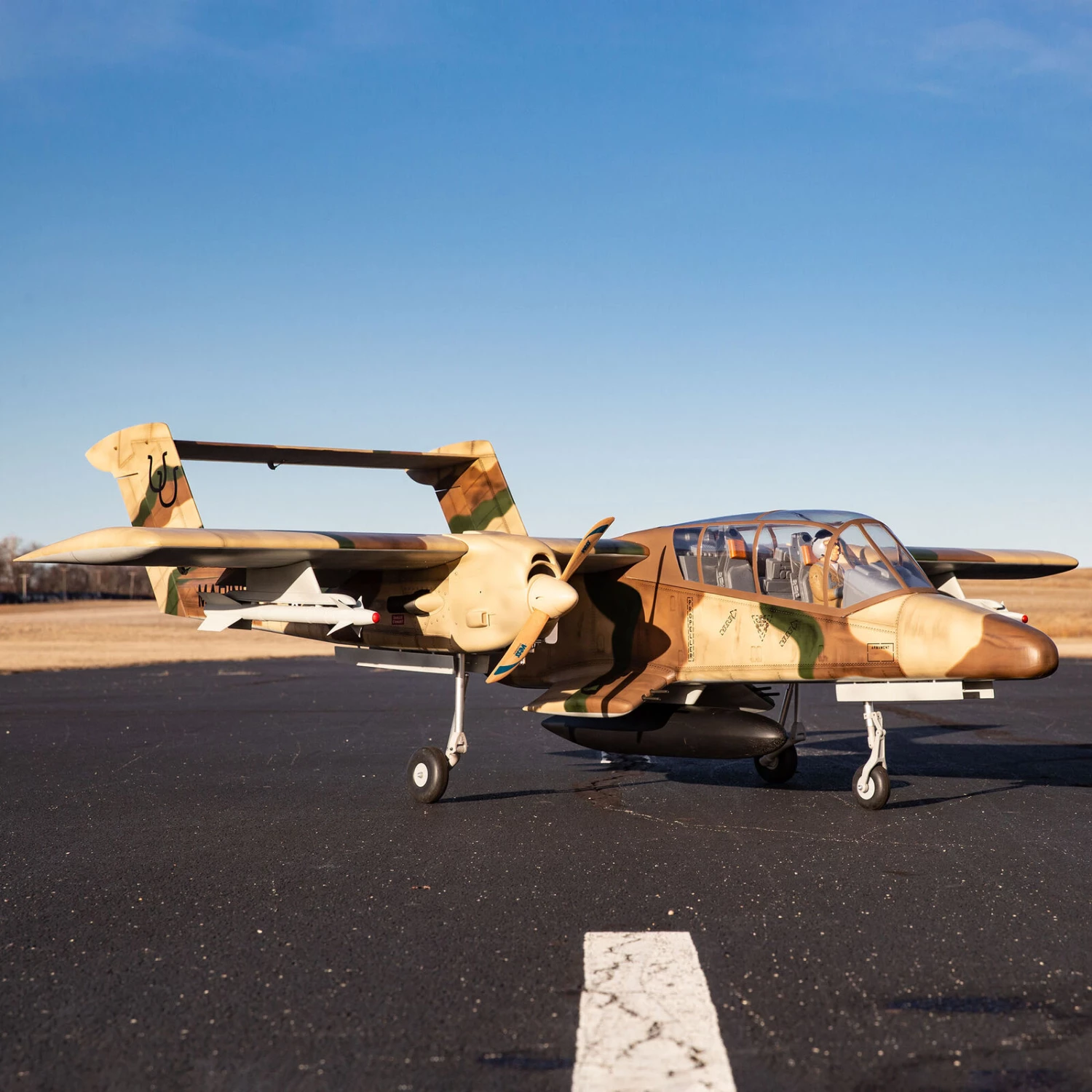

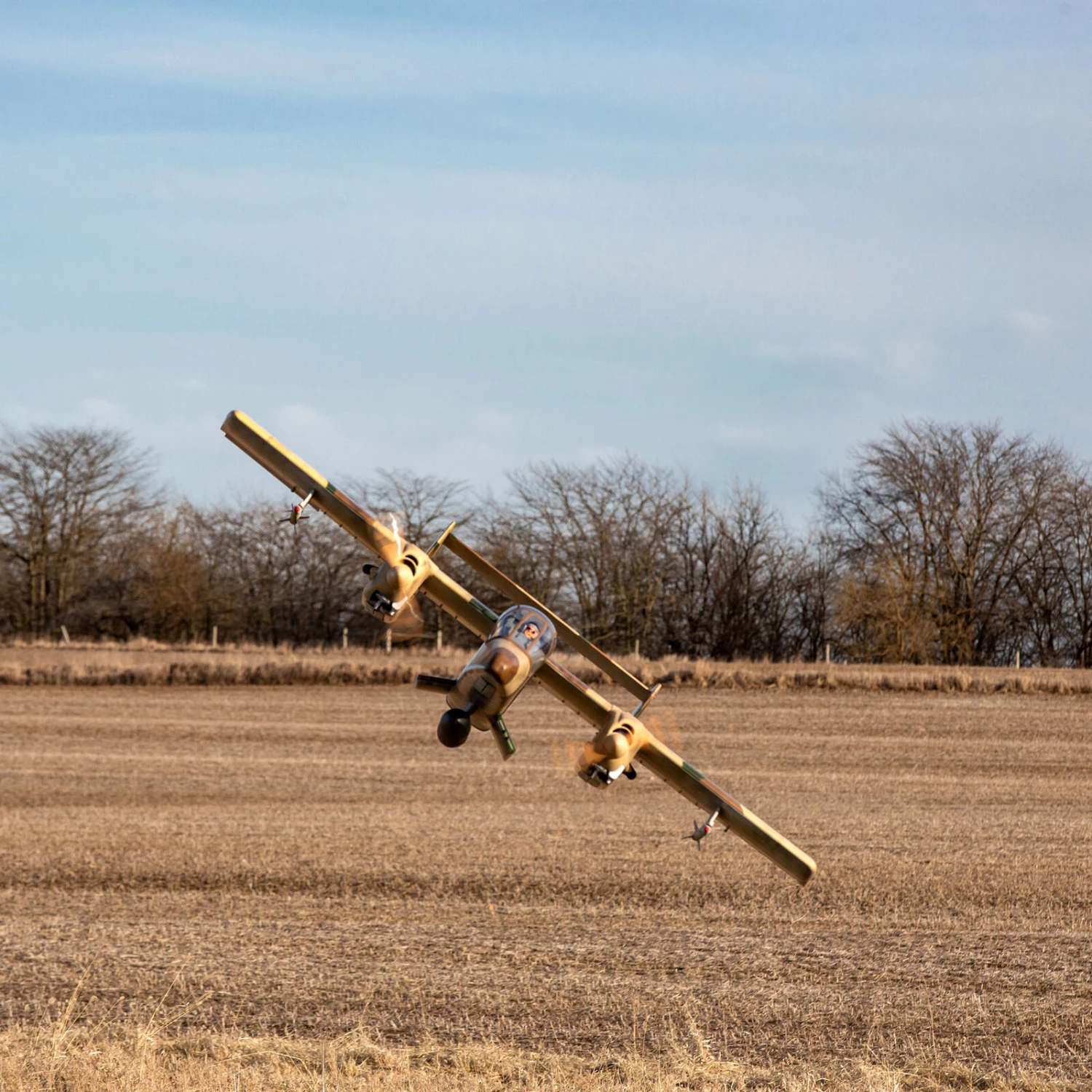

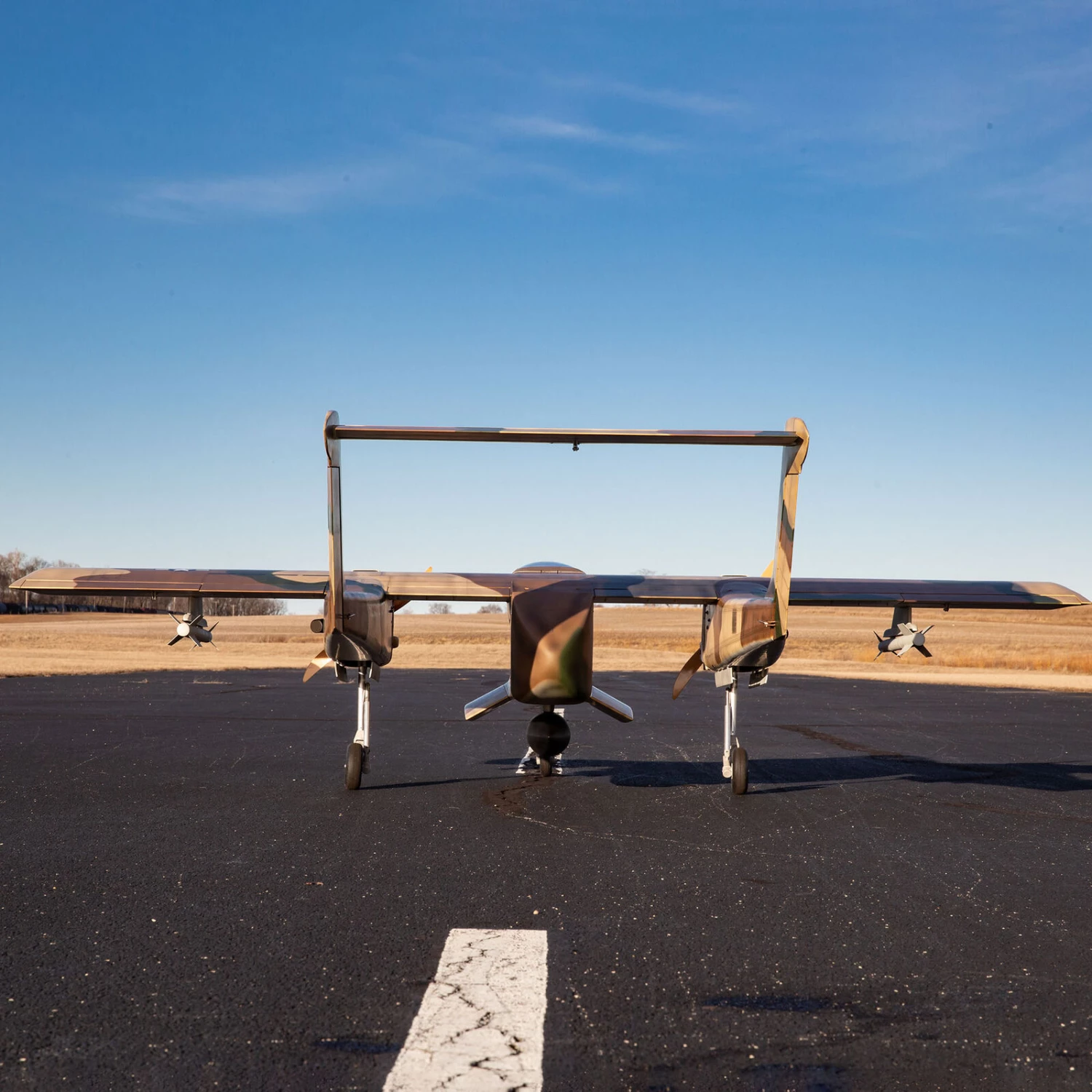

For the giant scale warbird enthusiast and experienced balsa pilot, the new Hangar 9® OV-10 Bronco is our largest giant scale warbird to date. It features many scale details and the incredible flight performance Hangar 9 customers expect.
Key Features

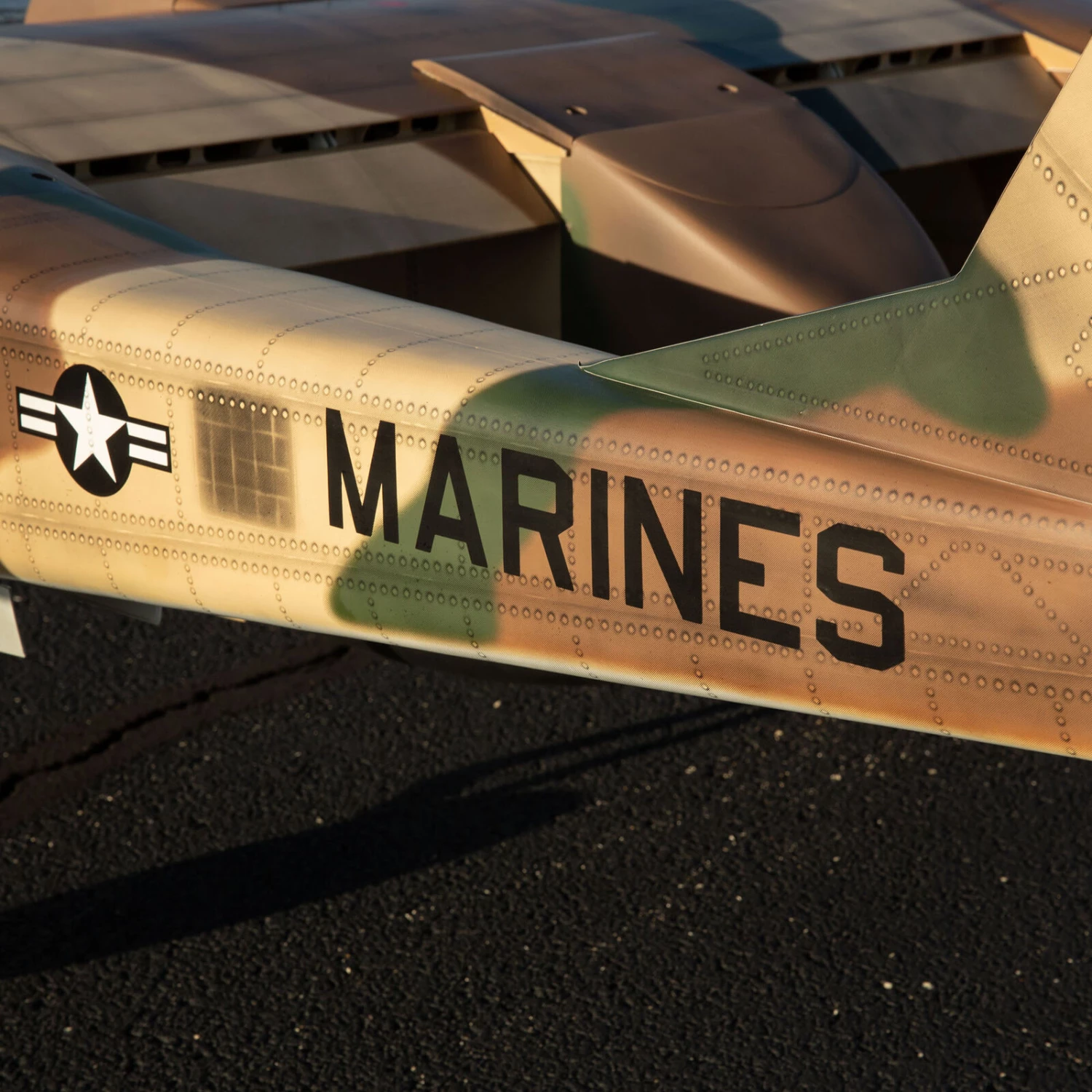

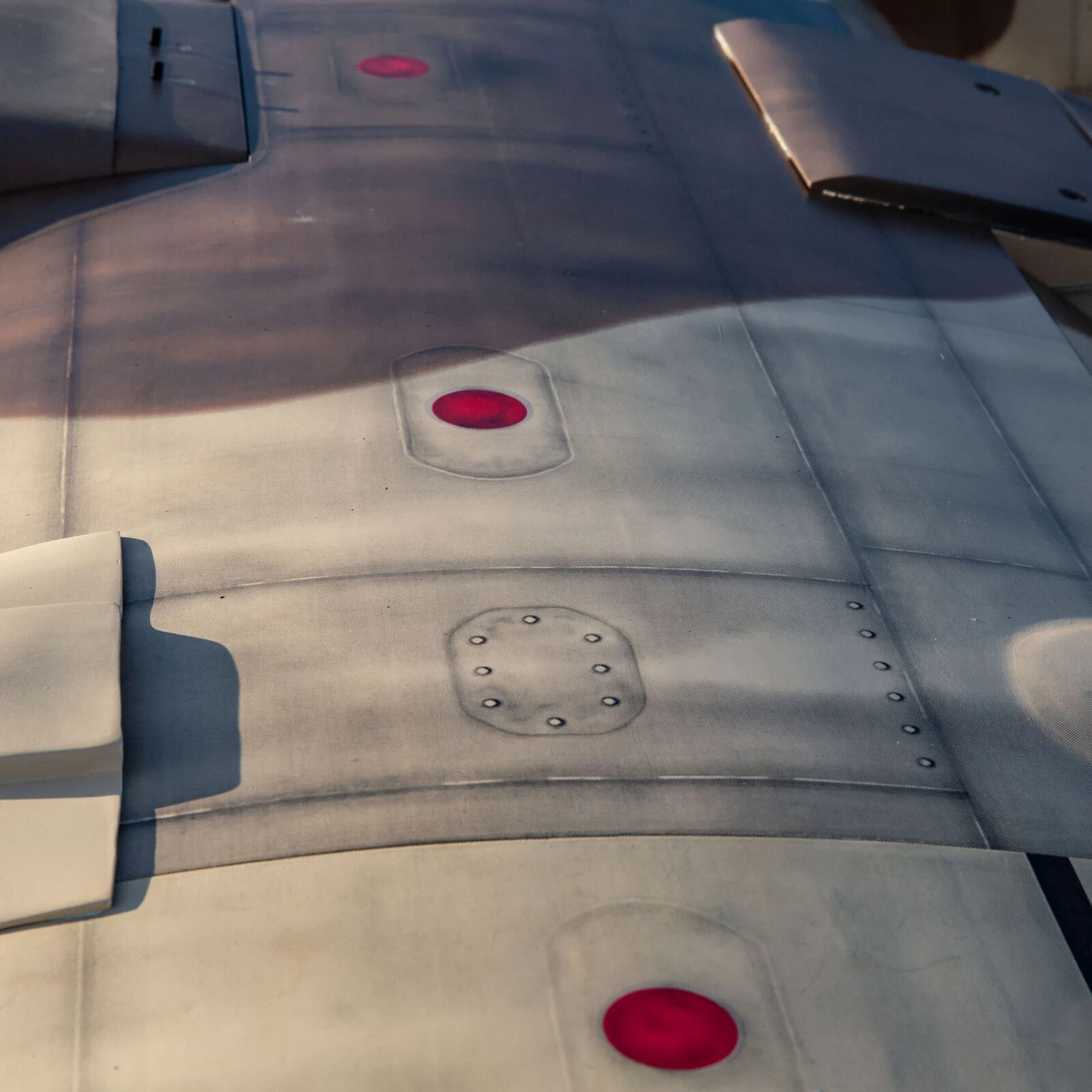

- Finely, detailed satin-finish printed covering includes panel lines, rivets, and weathering

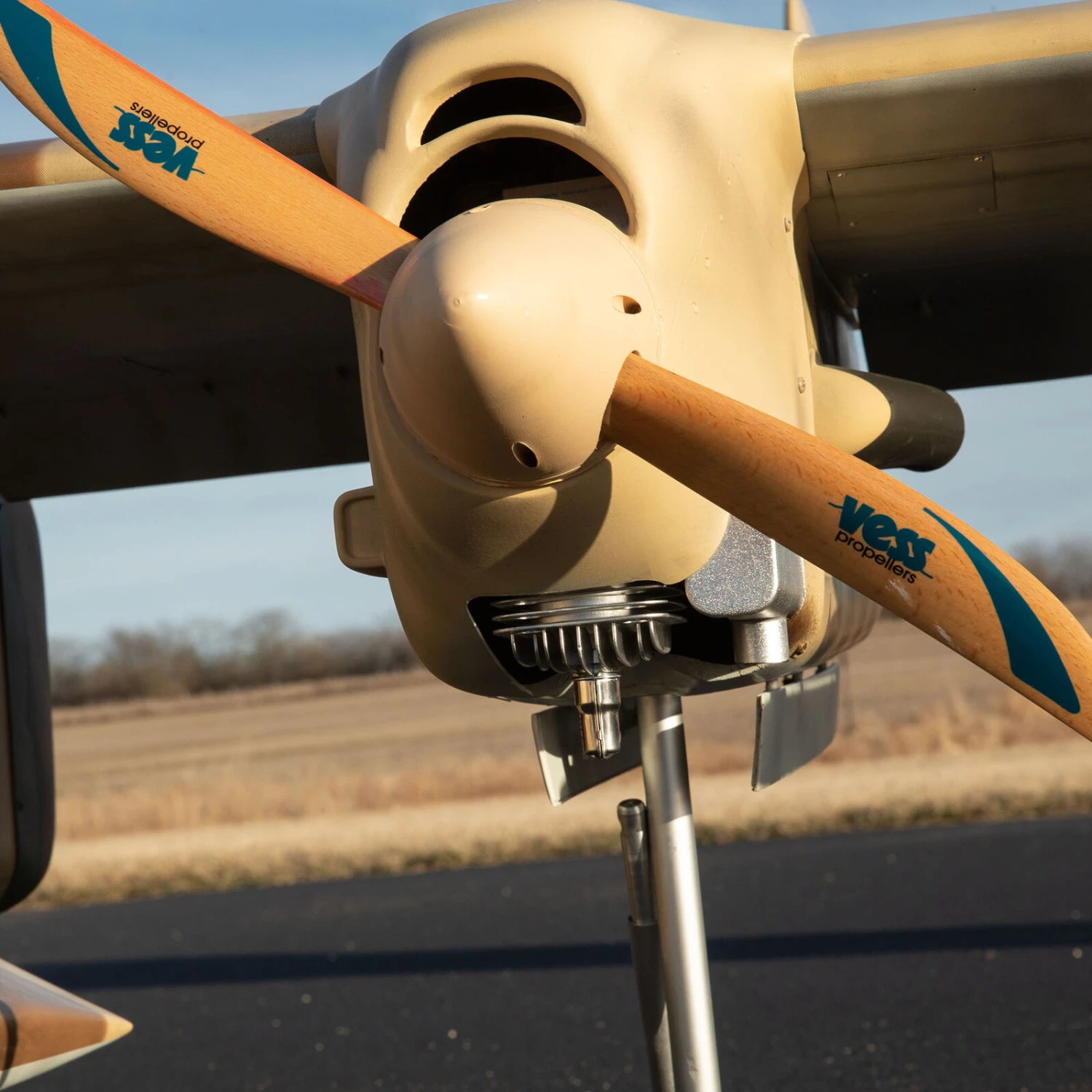

- Designed to fit 30-35cc gas engines or equivalent electric power systems
- Includes mounts for either gas or electric power options

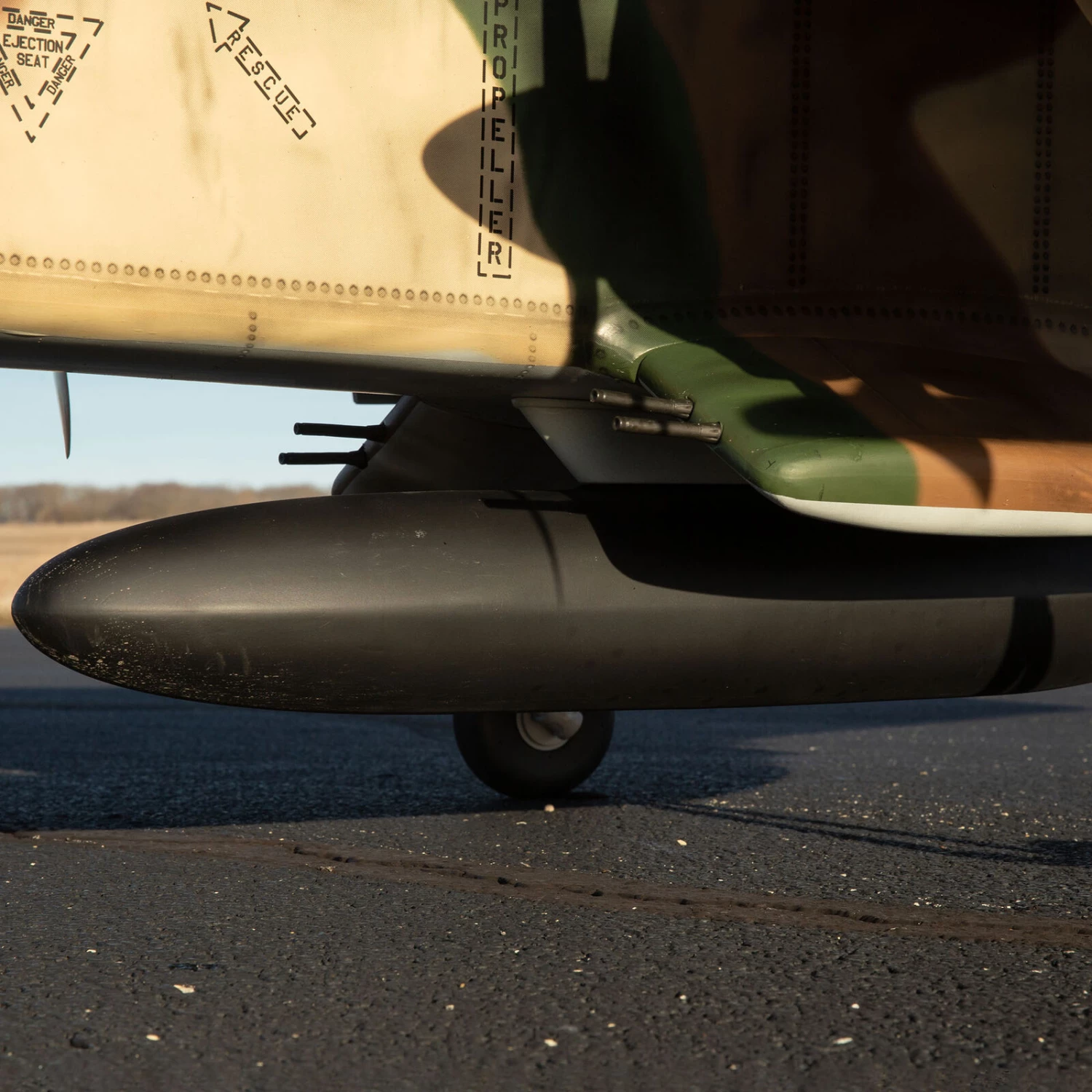

- 5″ Scale wheels included
- Combo includes Hangar 9 Electric Retract system

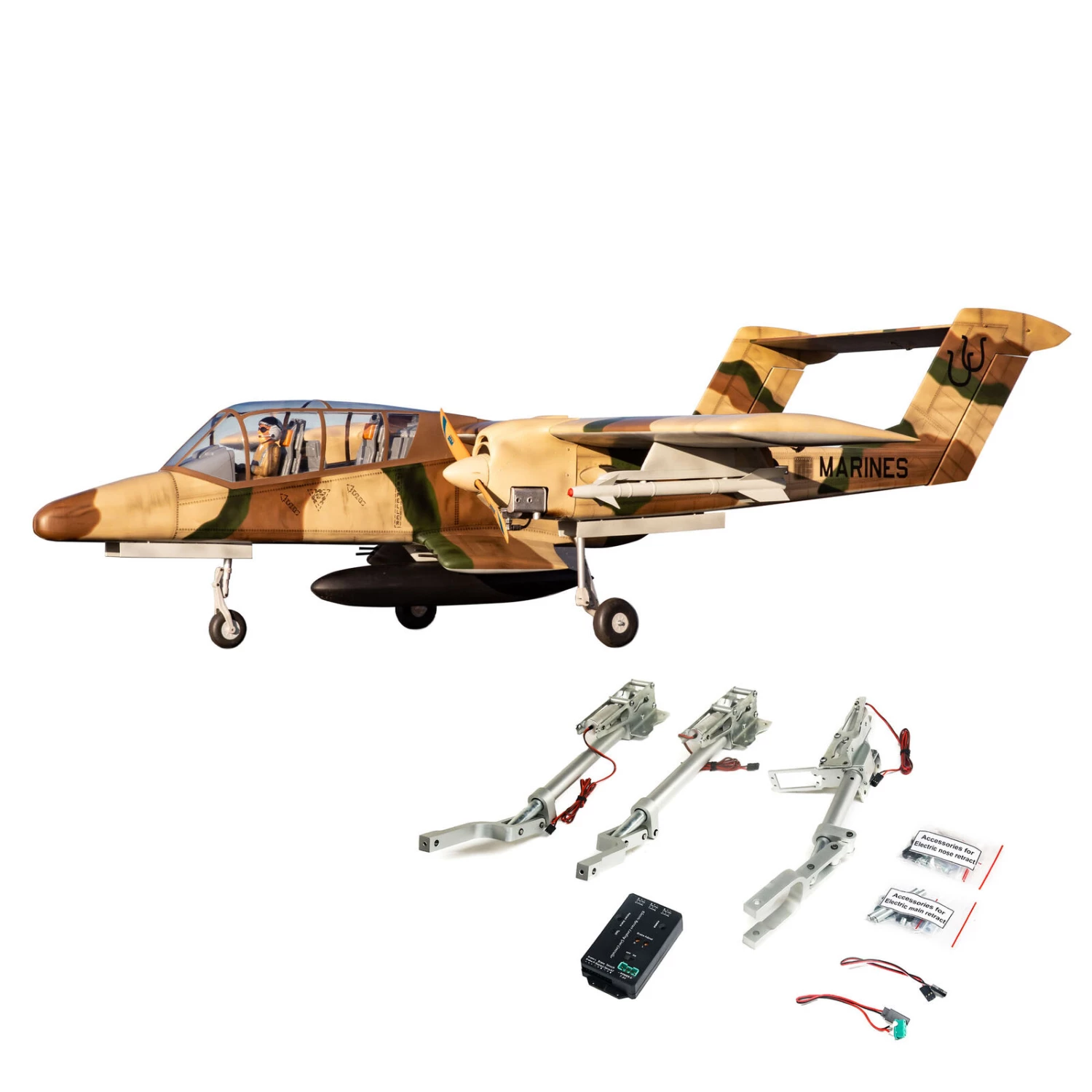

In The Box
- (1) Hangar 9 OV-10 Bronco 30cc ARF
- (1) Hangar 9 Scale Retract Set
- (1) Product Manual
Needed to Complete
- (2) 30cc two/four stroke gas engine or equivalent power system
- (1) Full range, 12+ channel transmitter and receiver
- (2) Batteries for electronic ignition (for gas power option) and (1) for receiver
- (1) Standard Digital HV High Torque Metal Gear Servo
- (9) Standard Digital HV High Torque High Speed Servos
- (2) Propellers
Features
Product Specifications
| Landing Gear | Electric retracts |
| Speed Control | Sold Separately |
| Wing Area | 15.75 sq in (1.017sq dm) |
| Airfoil Shape | Semi-symmetrical |
| Approximate Assembly Time | 20+ hours |
| Approximate Flight Time | Approximately 6 minutes |
| Flaps | Yes |
| Material | Wood |
| Retracts | Included |
| Battery | Sold Separately |
| Connector Type | EC3,IC3 |
| Engine Size | 30cc gasoline engine required |
| Motor Size | 120 – 180 required |
| Product Length | 113″ (2870 mm) |
| Steering | Yes |
| Charger | Sold Separately |
| Receiver | Sold Separately |
| Power Type | Electric/Gas |
| Servos | Sold Separately |
| Skill Level | Level 3 |
| Trim Scheme Colors | Printed covering |
| Wingspan | 108″ (2743 mm) |
| Minimum Required Radio | 12+ channel, full range |
| Radio | Sold Separately |
| Product Weight | 40 – 42lbs (18.1 – 19.05kg) |
| Spinner Size | 3.75″ (95 mm) |
| Wing Loading | 42.66 oz/sq ft (130.2 g/sq dm) |
| CG (Center of Gravity) | 6.5″ (165mm) |
| Completion Level | Almost Ready-To-Fly |
| Minimum Speed Control | 100A |
| Propeller Size | 18 |
| Prop Range | 17 – 20″ |
| Recommended Motor Battery | 6-12s 5000-10000mAh |
